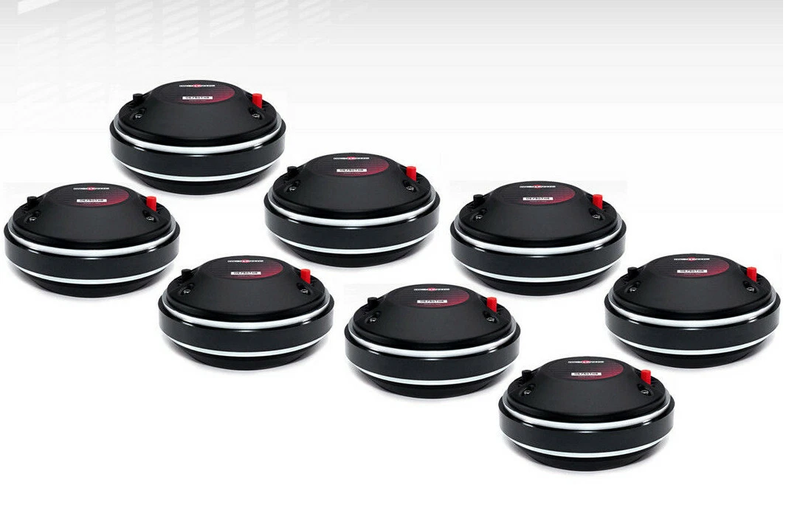

(8) B&C DE750TN-8 2" Titanium Horn Driver 220W 8 Ohm 4-Bolt, 3" aluminum voice coil (EIGHT)
- 220 W Continuous Power Handling
- 3.0 in (75 mm) Voice Coil Diameter
- Titanium Diaphragm Material
- 2.0 in (50 mm) Throat Diameter
Key Features
- 220 W continuous program power capacity
- 2" horn throat diameter
- 75 mm (3 in) aluminium voice coil
- Titanium diaphragm
- 500 - 18000 Hz response
- 107.5 dB sensitivity
- Shorting copper cap for extended HF response
Specifications1
- Throat Diameter50 mm (2.0 in)
- Nominal Impedance8 Ohm
- Minimum Impedance7.8 Ohm
- Nominal Power Handling2110 W
- Continuous Power Handling3220 W
- Sensitivity4107.5 dB
- Frequency Range1.0 - 18.0 kHz
- Recommended Crossover50.8 kHz
- Voice Coil Diameter75 mm (3.0 in)
- Winding MaterialAluminium
- Inductance0.14 mH
- Diaphragm MaterialTitanium
- Flux Density1.9 T
- Magnet MaterialFerrite
Mounting And Shipping Info
- Four M6 holes 90° on 102 mm (4 in) diameter
- Overall Diameter180 mm (7.1 in)
- Depth87 mm (3.4 in)
- Net Weight6.3 kg (13.9 lb)
- Shipping Units1
- Shipping Weight6.5 kg (14.3 lb)
- Shipping Box190x190x120 mm (7.5x7.5x4.7 in)
Replacement Diaphragm
- MMD3ATN8
