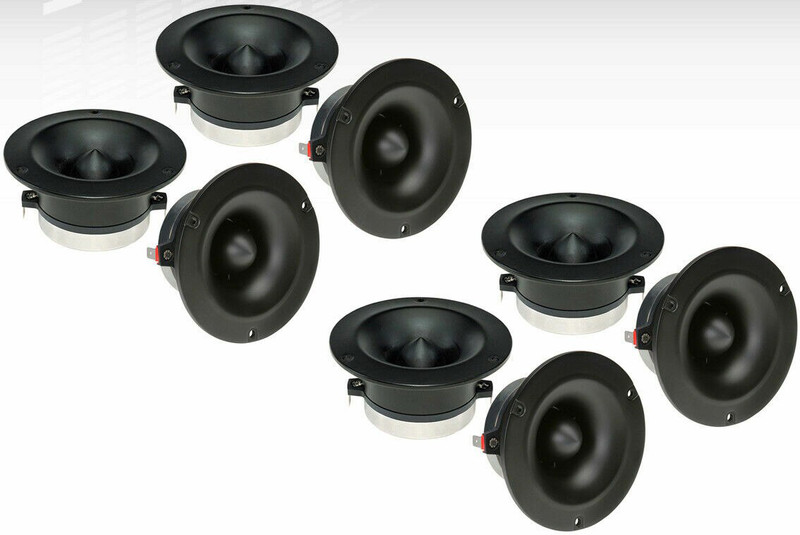

8x B&C DE35 Tweeter 1.25 inches 50W Neodymium Mylar Bullet Tweeter 8-Ohm (EIGHT)

B&C DE35 Tweeter 1.25 inches 50W Neodymium Mylar Bullet Tweeter 8-Ohm

• 1.25 in (32 mm) Voice Coil Diameter

• 50 W Continuous Power Handling

• Mylar Diaphragm Material

Key Features

• 50 W continuous program power capacity

• 3500 - 18000 Hz response

• 108 dB sensitivity

• Neodymium magnet assembly

Specifications

• Nominal Impedance8 Ohm


• Minimum Impedance7.0 Ohm


• Nominal Power Handling 25 W

• Continuous Power Handling 50 W

• Sensitivity 108.0 dB

• Frequency Range4.0 - 18.0 kHz

• Recommended Crossover45.0 kHz

• Voice Coil Diameter32 mm (1.25 in)

• Winding MaterialAluminium

• Inductance0.1 mH

• Diaphragm MaterialMylar

• Flux Density1.3 T

• Magnet MaterialNeodymium Inside Slug

Mounting And Shipping Info

• Three M4 holes 120° on 91 mm (3.6 in) diameter

• Overall Diameter100 mm (4.0 in)

• Depth46 mm (1.8 in)

• Net Weight0.7 kg (1.5 lb)

• Shipping Units8

• Shipping Weight6.25 kg (13.78 lb)

• Shipping Box235x235x165 mm (9.25x9.25x6.50 in)

Service Kit

• MMD0358
