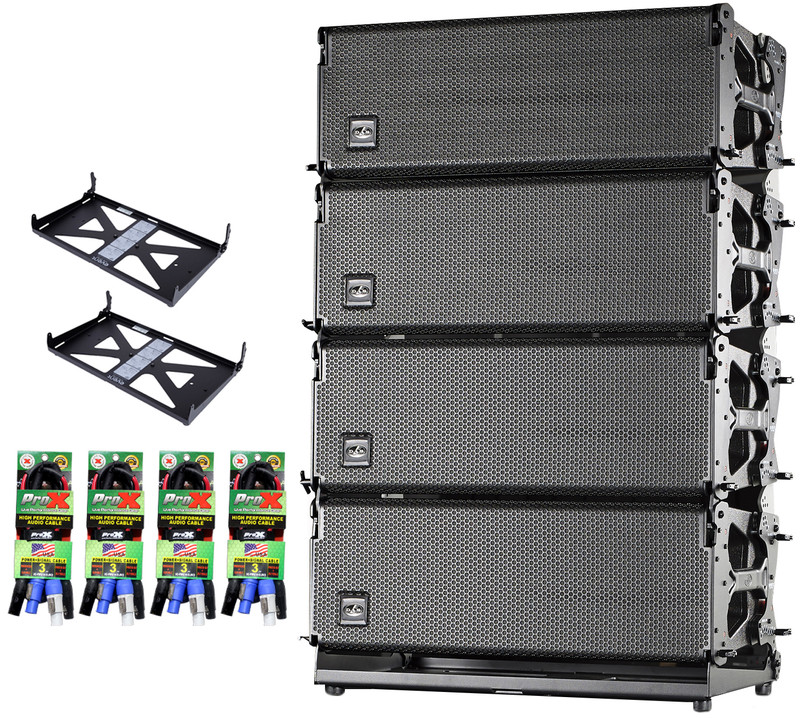

Package Includes
-
4x DAS Event-210A Dual 10" Powered Line Array Speakers
-
2x D.A.S Audio AXS-Event 210 Stacking / Mounting Bracket for Event 210A Line Array Module
-
4x ProX XC-PWC14-XLR03 3 Ft. Grey/XLR-F Connector to Blue/XLR-M Link Cable for Power Connection
DAS Event 210A Dual 10" Multipurpose Powered Line Array Speaker
Features
-
Powered 3-way system
-
Light-weight Class D amplifier topology
-
High-end DSP chipsets
-
Easy-DSP Interface
-
Quality Neutrik® connectors
-
Top grade Birch cabinet construction
-
Durable ISO-flex finish
-
Robust quick-rig professional rigging hardware
-
Proprietary injected aluminium HF waveguide
-
D.A.S. M-75 compression driver and cone transducers
The Event 210A Line is a three-way powered line array in a double 10" dual-band configuration which provides a wider frequency range. The D.A.S. loudspeaker units has been teamed up with a single M-75 compression driver and purpose-designed injected aluminum high frequency waveguide. The Event 210A line array is powered by a three channel Class D amplifier which provides 360 Wpeak per channel. The amp´s rear panel includes quality Neutrik® XLR and powerCON connectors, status LEDS to facilitate setup and D.A.S.'s Easy-DSP interface which simplifies preset selection for the number of units and throw depth.
| Nominal HF Amplifier Power |
|
| Nominal MF Amplifier Power |
|
| Nominal LF Amplifier Power |
|
| Frequency Range (-10 dB) |
|
| Rated Peak SPL at 1 m |
|
| Horizontal Coverage (-6 dB) |
|
| Vertical Coverage |
|
| Enclosure Material |
|
| Color/Finish |
|
| Connectors |
|
| AC Requirements |
|
| Dimensions (H x W x D) |
|
| Weight |
|
DAS Event 218A Dual 18" Powered Subwoofer
The Event 218A dual 18" powered subwoofer makes use of one of D.A.S.´s most acclaimed loudspeakers, the LX series long excursion transducers which were introduced in the high-level LX-218. The enclosure is designed for horizontal use, built using quality Birch plywood, finished with the ISO-flex coating and has a pole mount socket on the upper panel.
The power amplifier provides 3600 Wpeak power and offers features found on the more expensive LX subwoofers such as the Cardioid Preset mode switch which offers specific signal treatment for easy set-up of pairs of systems in cardioid subwoofer applications. The system includes two balanced inputs (A-B) with stereo HPF (100 Hz) filtered output connections for satellite systems. Defeating the HPF filter offers stereo "loop thru" connections. The variable LPF crossover ranges from 80 Hz-125 Hz. A gain control and polarity reverse feature increase user control over the system.
Event 218A Features:
- Powered high performance subwoofer system.
- 3600 Wpeak Class "D" amplifier.
- Two 18LX loudspeakers with 4″ voice coils.
- Front loaded bass-reflex configuration.
- Durable ISO-flex finish
DAS AXS-EVENT 210 Event 210 Stacking Bracket
- Stacking bracket, ceiling mount, truss mounting (requires AXC-AT) or TRD-2 mounting (requires AXC-ZT), for Event 210A.
ProX XC-PWC14-XLR03 3 Ft. Grey/XLR-F Connector to Blue/XLR-M Link Cable for Power Connection compatible devices
Description
The XC-PWC14-XLR03 3FT Power Connection and XLR Link Cable connect Blue to XLR Male and Grey to XLR Female Power Connection compatible connections. ProX cables are built with uncompromised quality with excellent performance at each connection - Instrument cables, Speaker cables, RCA cables, DMX cables, Power cables, and more. Our cables are made for professionals, by professionals.
