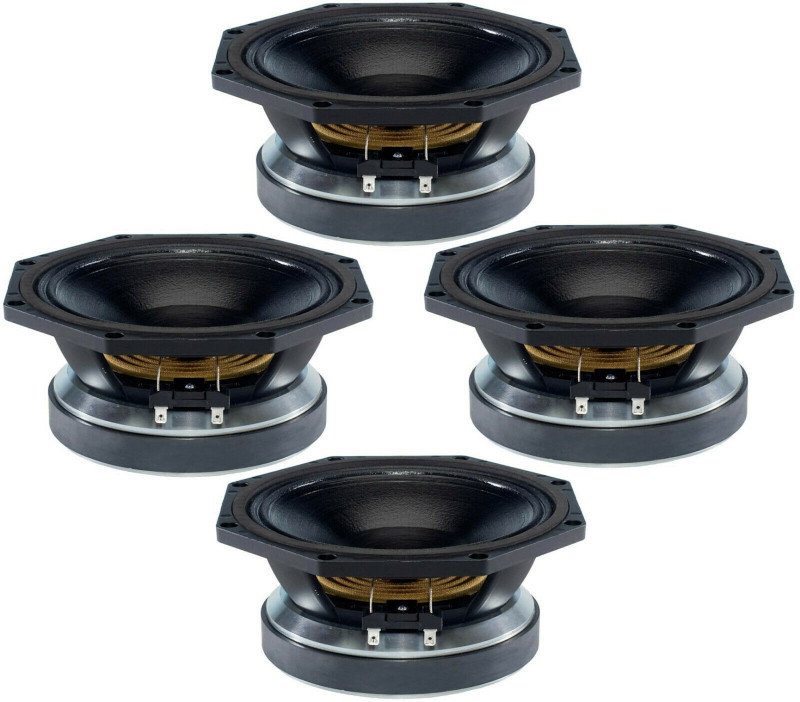

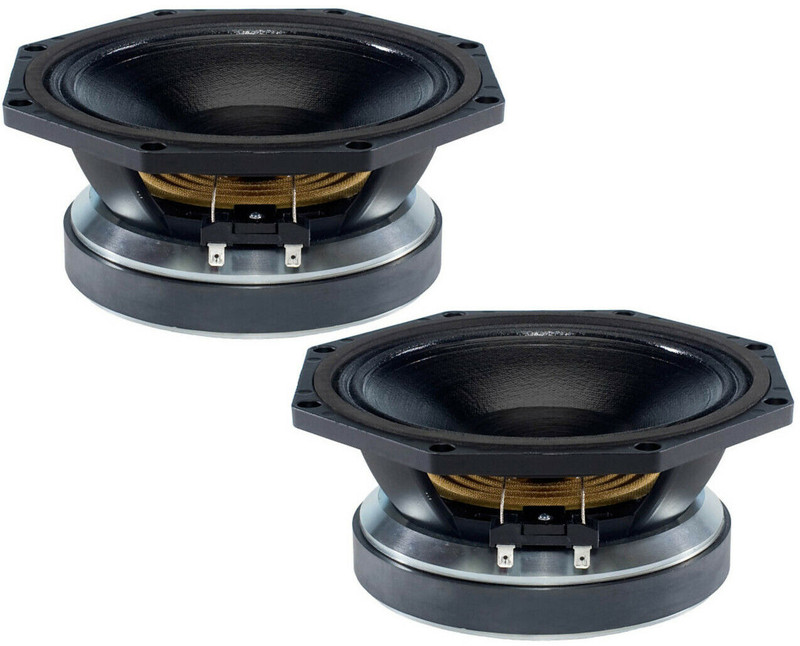

The B&C Speakers 8FW51 8" pro audio speaker offers high sensitivity and superior transient response.
It is a great choice for high-output PA midrange and midbass applications, whether horn-loaded or as a direct radiator.
Key Features
-
400 W continuous program power capacity
-
51 mm (2 in) copper voice coil
-
70 - 5000 Hz response
-
97 dB sensitivity
-
Shorting copper cap for extended HF response
-
Ventilated voice coil gap for reduced power compression
Specifications
-
Nominal Diameter:200 mm (8.0 in)
-
Nominal Impedance:8 Ω
-
Minimum Impedance:7.4 Ω
-
Nominal Power Handling:200 W
-
Continuous Power Handling:400 W
-
Sensitivity:97.0 dB
-
Frequency Range:70 - 5000 Hz
-
Voice Coil Diameter:51 mm (2.0 in)
-
Winding Material:Copper
-
Former Material:Kapton
-
Winding Depth:17.0 mm (0.65 in)
-
Magnetic Gap Depth:10.0 mm (0.4 in)
-
Flux Density:1.35 T
Design
-
Surround Shape: Double Roll
-
Cone Shape: Exponential
-
Magnet Material: Ferrite
-
Spider: Single
-
Pole Design: T-Pole
-
Woofer Cone Treatment: TWP Waterproof Both Sides
-
Recommended Enclosure: 12.0 dm3 (0.42 ft3)
-
Recommended Tuning:7 4 Hz
Parameters
-
Resonance Frequency:74 Hz
-
Re:5.2 Ω
-
Qes:0.21
-
Qms:9.3
-
Qts:0.21
-
Vas:12.0 dm3 (0.42 ft3)
-
Sd:220.0 cm2 (34.1 in2)
-
ηâ‚€:2.1 %
-
Xmax:6.0 mm
-
Xvar:5.0 mm
-
Mms:27.0 g
-
Bl:17.7 Txm
-
Le:0.56 mH
-
EBP:352 Hz
Mounting And Shipping Info
-
Overall Diameter:225 mm (8.8 in)
-
Bolt Circle Diameter:210 mm (8.3 in)
-
Baffle Cutout Diameter:187.0 mm (7.4 in)
-
Depth:100 mm (3.94 in)
-
Flange and Gasket Thickness:9 mm (0.35 in)
-
Air Volume Occupied by Driver:1.5 dm3 (0.05 ft3)
-
Net Weight:5.3 kg (11.6 lb)
-
Shipping Units:1
-
Shipping Weight:5.75 kg (12.68 lb)
-
Shipping Box:255x255x150 mm (10.04x10.04x5.91 in)
Service Kit
-
RCK008FW518
