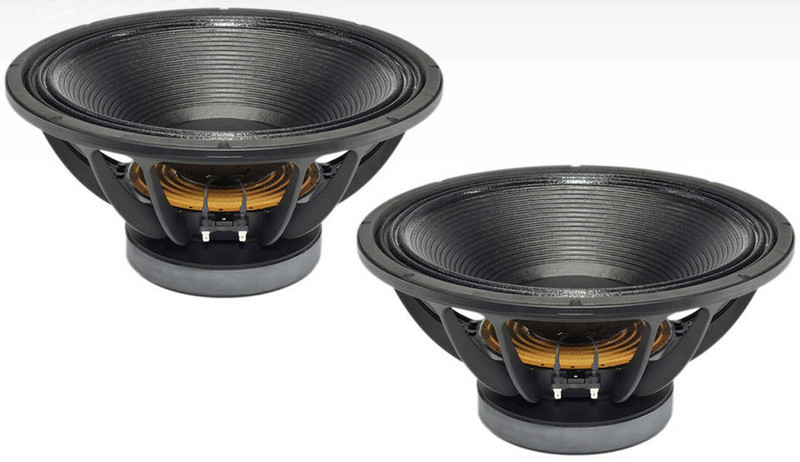

B&C 18TBW100 18" Professional 3000 Watts Subwoofer 8-Ohm
Key Features
-
3000 W continuous program power capacity
-
100 mm (4 in) split winding copper voice coil
-
35 - 1000 Hz response
-
96 dB sensitivity
-
57 mm peak-to-peak excursion before damage
-
Double silicone spider with optimized compliance
-
Ventilated voice coil gap for reduced power compression
-
Aluminium demodulating ring for very low distortion
Specifications
-
Nominal Diameter 460 mm (18.0 in)
-
Nominal Impedance 8 Ohm
-
Minimum Impedance 6.5 Ohm
-
Nominal Power Handling 1500 W
-
Continuous Power Handling 3000 W
-
Sensitivity3 96.0 dB
-
Frequency Range 35 - 1000 Hz
-
Voice Coil Diameter 100 mm (4.0 in)
-
Winding Material Copper
-
Former Material Glass Fibre
-
Winding Depth 31.0 mm (1.22 in)
-
Magnetic Gap Depth 15.0 mm (0.59 in)
-
Flux Density 1.15 T
Parameters
-
Resonance Frequency 35 Hz
-
Re 5.3
-
Qes 0.41
-
Qms 8.0
-
Qts 0.39
-
Vas 175.0 dm3 (6.18 ft3)
-
Sd 1210.0 cm2 (187.6 in2)
-
1.76 %
-
Xmax 12.0 mm
-
Xvar 14.0 mm
-
Mms 245.0 g
-
Bl 26.4 Txm
-
Le 2.45 mH
-
EBP 85 Hz
Mounting And Shipping Info
-
Overall Diameter 460 mm (18.0 in)
-
Bolt Circle Diameter 442 mm (17.4 in)
-
Baffle Cutout Diameter 422.0 mm (16.6 in)
-
Depth 241 mm (9.5 in)
-
Flange and Gasket Thickness 16 mm (0.61 in)
-
Air Volume Occupied by Driver 11.0 dm3 (0.39 ft3)
-
Net Weight 15.1 kg (33.3 lb)
-
Shipping Units 1
-
Shipping Weight 16.7 kg (36.82 lb)
-
Shipping Box 500x495x275 mm (19.69x19.49x10.83 in)
Service Kit
-
RCK18TBW1008
