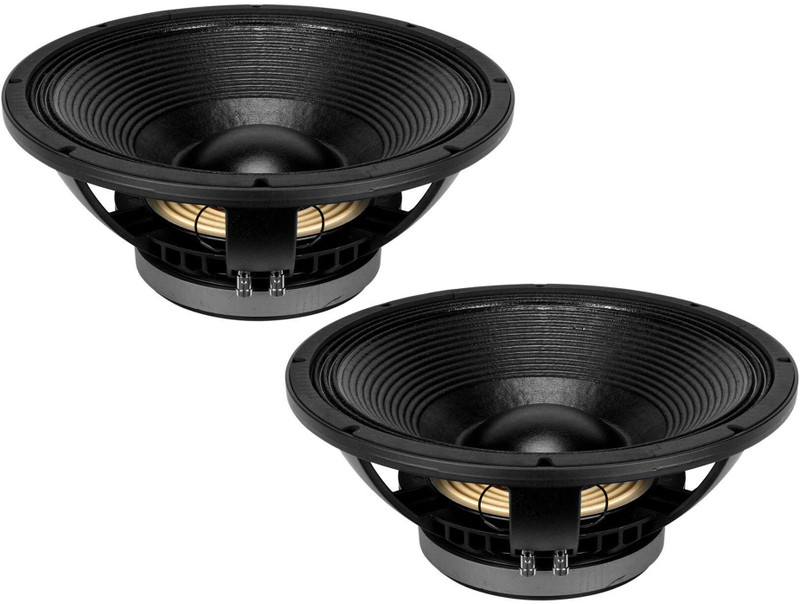

B&C 18PS100-8
Description
The most powerful 18" in the B&C ceramic product range with its 700 watts RMS power handling, the 18PS100-8 defines the low frequency reproduction "state of the art".
The industry-standard B&C Speakers 18PS100 features a 0.83" long/4" diameter copper wire voice coil with high thermal capability, and a ventilated magnet assembly, both of which contribute to low power compression. A very low distortion figure is obtained using a double spider design and dual demodulation rings in the magnetic path. The 18PS100 is fortified by a proprietary water-proof cone treatment that facilitates safe use in adverse climatic conditions. This benchmark pro subwoofer driver is found in many famous manufacturers' well-established loudspeaker enclosures.
- Nominal Diameter18"Power Handling (RMS) 700 Watts
- Power Handling (max)1,400 WattsImpedance 8 ohms
- Frequency Response30 to 1,000 HzSensitivity 96 dB 1W/1m
- Voice Coil Diameter 4"
Thiele-Small Parameters
- Resonant Frequency (Fs) 30 HzDC Resistance (Re )5 ohms
- Voice Coil Inductance (Le) 2.1 mHMechanical Q (Qms) 4.6
- Electromagnetic Q (Qes) 0.41Total Q (Qts) 0.39
- Compliance Equivalent Volume (Vas) 8.6 ft.³BL Product (BL) 22.5 Tm
- Diaphragm Mass Inc. Airload (Mms) 202gMaximum Linear Excursion (Xmax )8 mm
- Surface Area of Cone (Sd) 1210 cm²
Materials of Construction
- Cone MaterialCoated PaperVoice Coil Wire MaterialCopper
- Voice Coil FormerFiberglassBasket / Frame MaterialCast Aluminum
- Magnet MaterialFerrite
Mounting Information
- Overall Outside Diameter18"Baffle Cutout Diameter 16.6"
- Depth7.75"Bolt Circle Diameter 17.3"
- # Mounting Holes 8
- Weight 26.2 lbs
