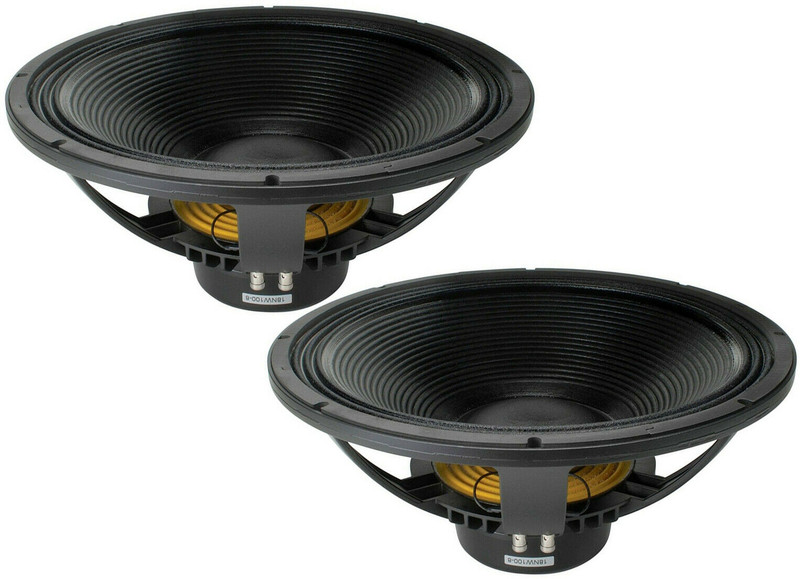

B&C 18NW100 18" Neodymium Subwoofer Speaker 2400W 8-Ohm / 35 to 1000 Hz Bass Sub
Key Features
-
2400 W continuous program power capacity
-
100 mm (4 in) copper voice coil
-
35 - 1000 Hz response
-
98 dB sensitivity
-
FEA optimized Neodymium magnet assembly
-
Double silicone spider with optimized compliance
-
Ventilated voice coil gap for reduced power compression
Specifications
-
Nominal Diameter 460 mm (18.0 in)
-
Nominal Impedance 8 Ohm
-
Minimum Impedance 6.3 Ohm
-
Nominal Power Handling 1200 W
-
Continuous Power Handling 2400 W
-
Sensitivity 98.0 dB
-
Frequency Range 35 - 1000 Hz
-
Voice Coil Diameter 100 mm (4.0 in)
-
Winding Material Copper
-
Former Material Glass Fibre
-
Winding Depth 25.0 mm (1.0 in)
-
Magnetic Gap Depth 12.0 mm (0.5 in)
-
Flux Density 1.2 T
Parameters
-
Resonance Frequency 31 Hz
-
Re 5.1 Ohm
-
Qes 0.27
-
Qms 4.2
-
Qts 0.26
-
Vas 252.0 dm3 (8.9 ft3)
-
Sd 1210.0 cm2 (187.6 in2)
-
2.7 %
-
Xmax 9.0 mm
-
Xvar 11.0 mm
-
Mms 211.0 g
-
Bl 28.0 Txm
-
Le 1.7 mH
-
EBP 114 Hz
Mounting And Shipping Info
-
Overall Diameter 460 mm (18.0 in)
-
Bolt Circle Diameter 440 mm (17.3 in)
-
Baffle Cutout Diameter 422.0 mm (16.6 in)
-
Depth 209 mm (8.2 in)
-
Flange and Gasket Thickness 16 mm (0.62 in)
-
Air Volume Occupied by Driver 8.5 dm3 (0.3 ft3)
-
Net Weight 9.3 kg (20.5 lb)
-
Shipping Weight 10.9 kg (24.03 lb)
-
Shipping Box 500x495x275 mm (19.69x19.49x10.83 in)
Service Kit
-
RCK18NW1008
