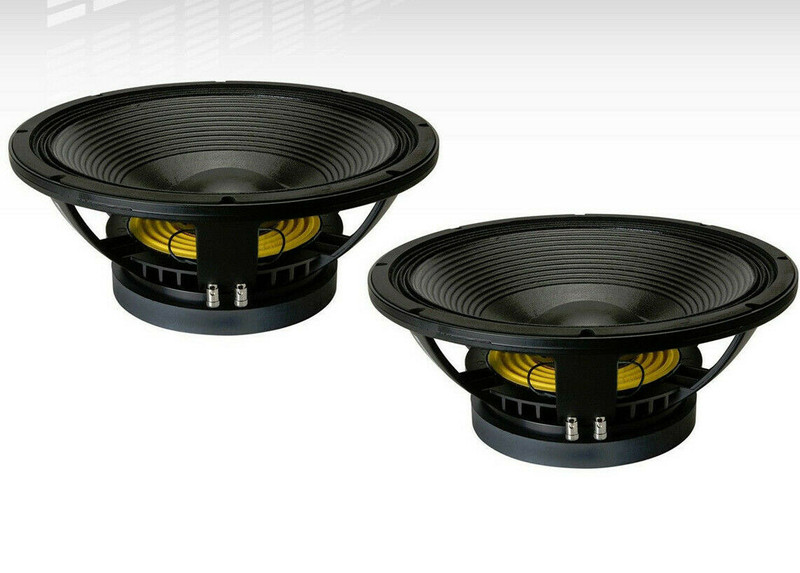

2x B&C 15TBX100-8 15" Hi-Performance Subwoofer 2000W 8-Ohm Bass Woofer Speaker.

B&C 15TBX100-8 15" Hi-Performance Subwoofer 2000 Watts 8-Ohm Bass Woofer Speaker

• 2000 W Continuous Power Handling

• 4.0 in (100 mm) Voice Coil Diameter

• Ferrite Magnet Material

Key Features

• 2000 W continuous program power capacity

• 100 mm (4 in) copper voice coil

• 35 - 1500 Hz response

• 96 dB sensitivity

• Aluminium demodulating ring allows a very low distortion figure

• Double silicone spider with optimized compliance

• Ventilated voice coil gap for reduced power compression

Specifications

• Nominal Diameter 380 mm (15.0 in)

• Nominal Impedance 8 Ohm


• Minimum Impedance 6.2 Ohm


• Nominal Power Handling 1000 W

• Continuous Power Handling 2000 W

• Sensitivity 96.0 dB

• Frequency Range 35 - 1500 Hz

• Voice Coil Diameter 100 mm (4.0 in)

• Winding Material Copper

• Former Material Glass Fibre

• Winding Depth 25.0 mm (1.0 in)

• Magnetic Gap Depth 12.0 mm (0.5 in)

• Flux Density 1.1 T

Parameters

• Resonance Frequency 35 Hz

• Re 5.1 Ohm

• Qes 0.3

• Qms 5.2

• Qts 0.28

• Vas 113.0 dm3 (3.8 ft3)

• Sd 855.0 cm2 (132.5 in2)

• 1.95 %

• Xmax 9.0 mm

• Xvar 11.0 mm

• Mms 163.0 g

• Bl 25.5 Txm

• Le 1.6 mH

• EBP 116 Hz

Mounting And Shipping Info

• Overall Diameter 393 mm (15.5 in)

• Bolt Circle Diameter 374 mm (14.7 in)

• Baffle Cutout Diameter 354.0 mm (13.9 in)

• Depth 181 mm (7.1 in)

• Flange and Gasket Thickness 16 mm (0.62 in)

• Air Volume Occupied by Driver 5.4 dm3 (0.19 ft3)

• Net Weight 12.3 kg (27.1 lb)

• Shipping Weight 13.6 kg (29.98 lb)

• Shipping Box 425x425x224 mm (16.73x16.73x8.82 in)

Service Kit

• RCK15TBX1008
