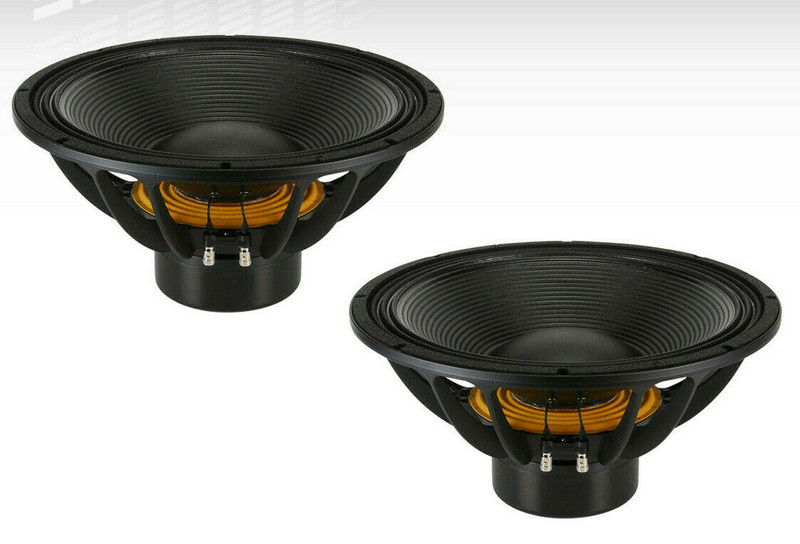

B&C 15SW115-4 15" Professional Neodymium Replacement Subwoofer 3400W 4-Ohm Sub
- Continuous Power Handling
- Voice Coil Diameter
- Magnet Material
Key Features
-
3400 W continuous program power capacity
-
116 mm (4.5 in) split winding copper voice coil
-
35 - 1500 Hz response
-
96 dB sensitivity
-
Double silicone spider with optimized compliance
-
60 mm peak-to-peak excursion before damage
-
Ventilated voice coil gap for reduced power compression
-
Aluminium demodulating ring for very low distortion
Specifications
-
Nominal Diameter380 mm (15.0 in)
-
Nominal Impedance4 Ohm
-
Minimum Impedance4.2 Ohm
-
Nominal Power Handling11700 W
-
Continuous Power Handling23400 W
-
Sensitivity396.0 dB
-
Frequency Range35 - 1500 Hz
-
Voice Coil Diameter116 mm (4.5 in)
-
Winding MaterialCopper
-
Former MaterialGlass Fibre
-
Winding Depth34.0 mm (1.33 in)
-
Magnetic Gap Depth14.0 mm (0.55 in)
-
Flux Density1.15 T
Parameters
-
Resonance Frequency34 Hz
-
Re3.2
-
Qes0.23
-
Qms5.8
-
Qts0.22
-
Vas105.0 dm3 (3.71 ft3)
-
Sd855.0 cm2 (132.5 in2)
-
1.75 %
-
Xmax13.5 mm
-
Xvar13.0 mm
-
Mms212.0 g
-
Bl25.5 Txm
-
Le1.27 mH
-
EBP147 Hz
Mounting And Shipping Info
-
Overall Diameter393 mm (15.5 in)
-
Bolt Circle Diameter374 mm (16.7 in)
-
Baffle Cutout Diameter353.0 mm (13.9 in)
-
Depth193 mm (7.6 in)
-
Flange and Gasket Thickness16 mm (0.63 in)
-
Air Volume Occupied by Driver7.0 dm3 (0.25 ft3)
-
Net Weight12.0 kg (26.4 lb)
-
Shipping Units1
-
Shipping Weight13.3 kg (29.32 lb)
-
Shipping Box425x425x224 mm (16.73x16.73x8.82 in)
Service Kit
-
RCK15SW1154
