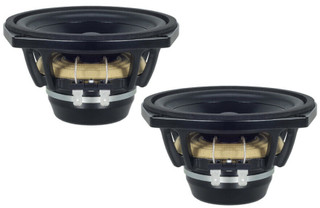

B&C 10NSM76-8 10" Professional Neodymium Sealed Back Midrange Speaker 800 Watts

Experience exceptional sound quality with this professional-grade B&C 10NSM76-8 midrange speaker. With a powerful 400W RMS power output, this wired speaker is designed to deliver outstanding audio performance for a variety of applications.

The 10-inch neodymium sealed back construction ensures crystal-clear sound reproduction, while the sleek black color and compact design make it a perfect fit for any speaker system.

This model, the 10NSM76-8, boasts a custom no-bundle feature, making it a versatile and reliable choice for both amateur and professional musicians. Ideal for use in speaker systems, pro audio equipment, and musical instruments, this B&C midrange speaker guarantees superior quality and unparalleled performance.

For simplified cabinet assembly and efficient thermal transfer to the air, our NSM series of sealed back midranges feature a cast aluminum sealed chassis, high strength neodymium motor, and large internal volume for good low frequency performance. Large voice coils provide power handling, while careful selection of suspension and cone components results in exceptional sensitivity.


These dedicated narrow-bandwidth midranges offer the lowest distortion at given output of any midrange available.

Features

  • 800 W continuous program power capacity

  • 76 mm (3 in) aluminium voice coil

  • 235 - 3500 Hz response

  • 100 dB sensitivity

  • Ideal for Direct Radiation and Horn Loaded Midrange application

Specifications

  • Nominal Diameter 250 mm (10.0 in)


  • Nominal Impedance 8 Ω


  • Minimum Impedance 7.0 Ω

  •
Nominal Power Handling1 400 W


  • Continuous power handling2 800 W


  • Sensitivity (1W/1m)3 100.0 dB


  • Frequency Range 235 - 3500 Hz


  • Voice Coil Diameter 76 mm (3.0 in)


  • Winding Material Aluminium


  • Former Material Glass Fibre

  •
Winding Depth 11.0 mm (0.45 in)


  • Magnetic Gap Depth 9.0 mm (0.35 in)


  • Flux Density 1.6 T

Design

  • Surround Shape Accordion


  • Cone Shape Radial


  • Magnet Material Neodymium Ring


  • Spider Single

  •
Pole Design T-Pole


  • Woofer Cone Treatment WP Waterproof Front Side

Parameters

  • Resonance Frequency 235 Hz


  • Re 5.2 Ω


  • Qes 0.55


  • Qms 8.6


  • Qts 0.52


  • Vas 2.0 dm3 (0.07 ft3)


  • Sd 320.0 cm2 (49.6 in2)


  • ηâ‚€ 4.5 %
Xmax ± 3.5 mm


  • Xvar ± 3.5 mm

  •
Mms 33.0 g


  • Bl 21.5 Txm


  • Le 0.9 mH


  • EBP 427 Hz



Mounting and Shipping Info

  • Overall Diameter 291 mm (11.46 in)


  • Bolt Circle Diameter 274 mm (10.79 in)


  • Baffle Cutout Diameter 234.0 mm (9.21 in)


  • Depth 130 mm (5.12 in)


  • Flange and Gasket Thickness 12 mm (0.47 in)


  • Air Volume Occupied by Driver 5.0 dm3 (0.18 ft3)


  • Net Weight 4.55 kg (10.03 lb)


  • Shipping Units 1

  •
Shipping Weight 5.45 kg (12.02 lb)


  • Shipping Box 360x360x200 mm (14.17x14.17x7.87 in)



Service Kit

Recone Kit RCK010NSM768
