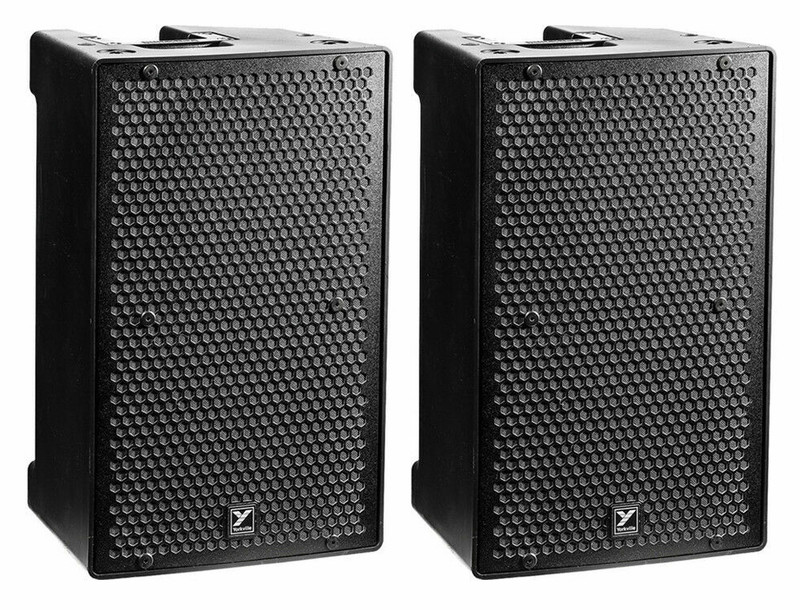

(2) Yorkville PS10P Parasource 10" / 1" 1600W PA Speaker Integrated 2-CH Mixer.

(2) Yorkville PS10P Parasource 10" / 1" 1600W PA Speaker Integrated 2-CH Mixer.

Yorkville Sound

Write a Review
SKU:
2x Yorkville PS10P T.C.
Condition:
New
Avaliability:
Free Shipping
Order before 2PM (EST) Mon-Fri for Same Day Shipping
Store Pick Up Available We Price Match! Call Us On 718-272-7228
Now: $2,378.00
Adding to cart… The item has been added
Make an Offer
Award-Winning Service
Free Shipping Orders $49+
30 Days
Easy Returns
Guaranteed
Lowest Price
In-House
Experts

Financing Available

Yorkville Parasource Series - PS10P 10-inch / 1-inch - 1600 watts

  • The most compact cabinet in the Parasource Series, the PS10P uses a high efficiency 10-inch woofer (with 2-inch voicecoil) to deliver extreme low end punch from as small a physical cabinet volume as possible. Wide 90° x 70° (H x V) conical horn delivers improved constant directivity and far better midrange response than competitive cabinets in this class.

Overview

  • Designed for maximum versatility, the PS10P works equally well as a Front-of House cabinet, side fill cabinet or floor monitor. Innovative and highly efficient passive cooling scheme ensures the PS10P will operate in any environment without need of noisy internal dust collecting fans. Integrated reinforced flypoints ensure the PS10P can be flown quickly and easily in any fixed installation.
  • Integrated DSP ensures the PS10P can operate in any application without complex external processing. A simple one-button high pass filter switch rolls off low frequency material when PS10P is used with any Paraline Series or powered élite System subwoofer. Bass boost delivers remarkably improved bottom end response from the PS10P without cluttering midrange program or affecting the cabinet's overall intelligibility - making it the perfect small speaker solution for larger events where additional subwoofer support is not available.
  • Innovative multi-band limiting allows the cabinet to deliver maximum output and remarkably event frequency response while protecting the PS10P's speaker components. Unlike competitive powered cabinets, the Parasource Series multi-band limiting scheme ensures essential elements like vocals and solo instruments in the essential midrange band aren't being modulated by transient attacks of low frequency material like kick drums and bass tracks. This delivers an extremely smooth and precise mix even at the highest output levels the cabinet can produce.
  • Rugged yet lightweight ABS cabinet and baffle design ensure unmatched long term reliability in the field.
  • Integrated 1600 Watt Amplifier Peak Power (800 Watts Program)

  • 10-inch Woofer with 2-inch Voicecoil

  • 1-inch Compression Driver

  • 90° x 70° Horn with Thermal and Peak Protection

  • Max SPL 127dB Peak (124dB Continuous)

  • High Efficiency Bi-Amplified Class-D Power Module

  • Passive Cooling Scheme (No Loud Fans Required)

  • Designed for Front-of-House or Monitor Applications

  • Integrated Two Channel Mini Mixer with XLR Microphone, 1/4-inch and RCA Line Inputs

  • Multiband Limiting Delivers Extremely Transparent Listening Experience (Vocals Are Not Modulated By Bass)

  • Integrated All Metal Speaker Standmount Adaptor

  • Integrated Reinforced Flypoints

  • Lightweight ABS Cabinet Construction

  • Optional PS10PCOVER available

  • Made in Canada

SPECIFICATIONS

System Type
  • Active Loudspeaker
Active or Passive
  • Active
Program Power (Watts)
  • 800 watts (1600 watts peak)
Max SPL (dB)
  • 127dB Peak (124dB Continuous)
Frequency Response (Hz +/- 3dB)
  • 55hz to 20kHz
Driver Configuration
  • 10-inch / 1-inch
HF Dispersion (°H x °V)
  • 90 x 70
HF Protection
  • Thermal/Peak Limiter
LF Driver(s)
  • 10-inch Ceramic w/ 2-inch Voicecoil
LF Protection
  • Thermal/Multiband Peak Limiter
LF Processing
  • Dynamic Bass Extension
Cooling Scheme
  • Passive
Power Cable
  • Detachable IEC
Inputs
  • 1/4-inch, XLR, RCA
Inputs - 1/4" Jacks
  • Yes (x2)
Inputs - XLR
  • Yes (x2)
Input Sensitivity (Vrms Sine)
  • 1.23 Vrms +4dBu
Mixer Controls
  • Sub Mode HPF, Bass Boost, Mixer Enable
Level Controls
  • Master Level, Mic Level, Line Level
LED Indicators
  • Power, Limit, Clip
Bar Handles
  • Yes
Flying Hardware
  • EYEBOLT1/4A
Pole Mount Adapter (1 3/8"-3.5cm)
  • Yes
Enclosure Materials
  • ABS
Baffle Material
  • ABS
Grille
  • Perforated Metal
Dimensions (DWH xbackW, inches)
  • 12 x 14 x 23
Dimensions (DWH xbackW, cm)
  • 30.5 x 35.5 x 58.5
Weight (lbs/kg)
  • 40 / 18.2
