Contact Us For Information, Se Habla Espanol 718 272-7228 / 215 Conklin Ave. Brooklyn NY 11236
Authorized Dealer/ Brand New Item / In Stock!

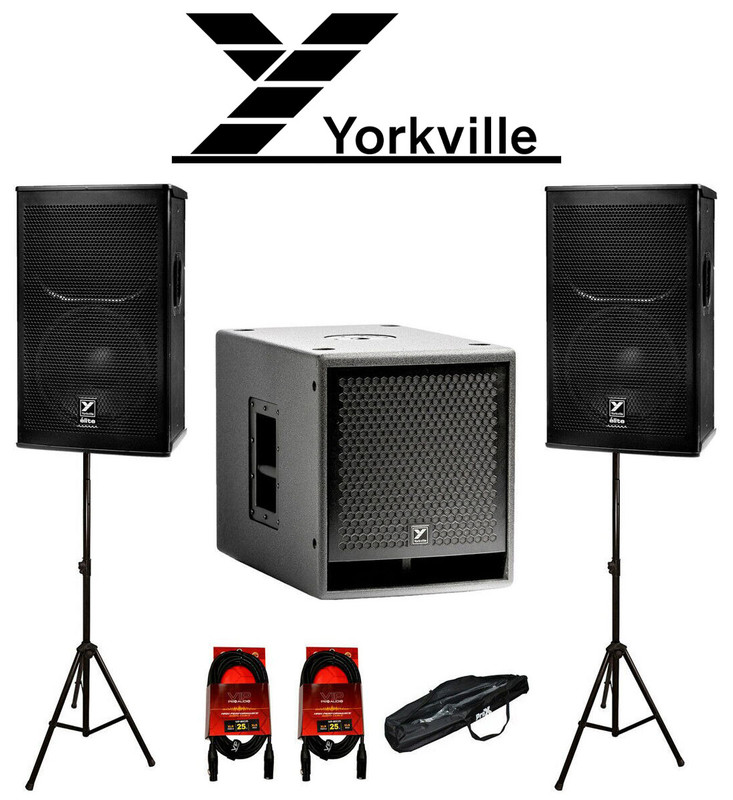

(2) Yorkville EF12P Elite Series 12-inch / 3-inch 2400 Watts Pro Speaker
+
(1) Yorkville PS15S 15" 2000 Watts Parasource Powered Subwoofer DJ / Club Active Sub
+
(2) Speaker Stand w/ Carrying Bag + (2) 25FT XLR Cables
Yorkville EF12P Elite Series 12-inch / 3-inch 2400 Watts Pro Speaker
In the 1980's, Yorkville Sound changed the face of high-powered portable speakers with the launch of the élite series. Indestructible wood cabinets with high output drivers offered PA professionals & weekend warriors alike a new level of high SPL speakers in portable packages. 30 years later, and we are changing the rules again.
- High Output, High Quality and extremely durable Dedicated Front of House box
- Completely Redesigned Next Generation Elite Cabinet
- ABS Coated Birch Plywood Cabinet Construction
- Multiband DSP Limiting with 4 Preset Playback Performance Modes
- 3-inch Titanium Diaphragm Compression Driver for Reduced Distortion at High SPL
- 12-inch Neodymium Woofer with 3-inch Voice coil
- iOS and Android App for Added Cabinet Control (Coming Soon)
- Made in Canada
Specifications
| System Type |
2-Way |
| Active or Passive |
Active |
| Program Power (Watts) |
1200 Watts (2400 Watts Peak) |
| Max SPL (dB) |
131dB Peak (125dB Continuous) |
| Frequency Response (Hz +/- 3dB) |
47 - 16k (Hz +/- 3dB) |
| Crossover Frequency (Hz) |
1100 |
| Driver Configuration |
12-inch, 3-inch Diaphragm |
| HF Driver(s) |
3-inch Voice coil (Titanium Diaphragm) |
| HF Dispersion (°H x °V) |
60x40 |
| LF Driver(s) |
12-inch Neo magnet w/3-inch Voice coil |
| HF Power Amplifier (Watts) |
300 |
| HF Amplifier Type |
3-Tier High Headroom |
| LF Power Amplifier (Watts) |
900 |
| LF Amplifier Type |
Class-D |
| Power Cable |
25 ft (7.6m) Heavy Gauge Detachable IEC |
| In / Out Connections |
1 x XLR & 1/4-inch Combi-jack, RCA Line Inputs
1 x XLR microphone Input
1 x XLR & 1/4-inch Combi-jack Main Input
1 x XLR-M Thruput |
| Input Impedance (Bal/UnBal) |
95KOhms / 90kOhms |
| Input Sensitivity (Vrms Sine) |
+4dBv / 1.23V |
| Controls |
Mixer Enable
Mic Input w/level
Line Input w/level
DSP Mode (Club, Concert, Vocal, Custom)
Sub (100Hz HP Filter)
Bluetooth Control Enable
Master Level |
| Bar Handles |
2 x Side / 1 x Top |
| Flypoints |
8 x ¼-20 (2 Top, 2 Bottom, 2 Each Side, 2 Pullback) |
| Pole Mount Adapter (1 3/8"-3.5cm) |
1 Bottom (1 3/8-inch / 3.5cm) |
| Enclosure Materials |
ABS Coated Baltic Birch Plywood |
| Dimensions (DWH xbackW, inches) |
14.5 x 18.6 x 28.2 x 11.1 |
| Dimensions (DWH xbackW, cm) |
36.8 x 47.25 x 71.6 x 28.2 |
| Weight (lbs/kg) |
59 / 26.8 |
Yorkville PS15S 15-inch - 1000 watts Parasource Powered Subwoofer
Features
- Compact High Performance Active Subwoofer
- Single 15-inch Long Throw Woofer w/ 3-inch VoiceCoil
- Max SPL 132dB Peak (126dB Continuous)
- Compact Bass Reflex Design
- Handles Line or Speaker Level (Powered) Input Sources
- XLR and ¼-inch Inputs and Link Outputs
- Ideal Companion Subwoofer for Parasource PS12P
- Solid 15mm Birch Cabinet Construction
- Integrated Pole Mount Adaptor and All Metal Handles
- Made in Canada
|
Overview
The 1000-watt compact single 15-inch active PS15S bass reflex subwoofer is one of the most versatile compact active subwoofers Yorkville Sound offers. Designed to be the ideal companion to the Parasource PS12P full range loudspeaker, the PS15S actually can be easily integrated in to virtually any small or medium format PA application. Cable of direct connection to any audio source (including speaker level input) the PS15S can easily be added to virtually any mobile live sound or installation PA system quickly for added low end support.
Solid 15mm birch plywood cabinet construction and an efficient Class-D power amplifier design provide unmatched long-term reliability in the field.
Specifications
| Active or Passive |
Active |
| Program Power (Watts) |
1000 Watts Program (2000 Watts Peak) |
| Max SPL (dB) |
132dB Peak (126dB Continuous) |
| Frequency Response (Hz +/- 3dB) |
45Hz-100Hz |
| Crossover Frequency (Hz) |
fixed @ 100Hz |
| Driver Configuration |
1x15-inch (Bass Reflex Cabinet) |
| LF Driver(s) |
1x15-inch Long Throw Ceramic w/ 3-inch VoiceCoil |
| Power Consumption |
3.4 Amps |
| Inputs |
XLR Balanced Line Level Input
¼-inch Line or Speaker Level Input |
| Outputs |
XLR Balanced Link Output
¼-inch Link Output |
| Controls |
Output Level, Line/Speaker Level Switch
Power/Limit/Clip LED's |
| Enclosure Materials |
15mm Birch |
| Baffle Material |
15mm Birch |
| Covering / Finish |
Paint |
| Dimensions (DWH xbackW, inches) |
24 x 17.4 x 20 |
| Dimensions (DWH xbackW, cm) |
61 x 44.2 x 50.8 |
| Weight (lbs/kg) |
82 / 37.3 |
|
|
|
